Power supply 24VDC NUOYING NYDR-3051 Pressure Level Meter Level gauge Signal output 4~20mA/HART/RS485/Modbus.

Name: Power supply 24VDC NUOYING NYDR3051 Pressure Level Meter Level gauge Signal output 420mAHARTRS485Modbus
Brand: NUOYING
Price: 199 USD

Quality Power supply 24VDC NUOYING NYDR-3051 Pressure Level Meter Level gauge Signal output 4~20mA/HART/RS485/Modbus. for sale

Brand Name : NUOYING

Model Number : NYDR-3051

Certification : CE, SIL, ATEX

Place of Origin : Xi'an,Shaanxi,China

MOQ : 1pcs

Price : $199 to $269/pcs

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-7 working day

Packaging Details : 40*30*30cm

Grade : Industrial

Warranty : 12 months

Customized support : OEM, ODM

Applications : Liquid, corrosive liquid, ete.

Measuring accuracy : 0.05%~0.1%F.S

Power supply : 24VDC

Process connection : Thread, flange (optional)

Process temperature : -40-+130℃.-184-+260℃

Process pressure : -0.1~1.6MPa

Signal output : 4...20mA/HART/RS485/Modbus...

Protection grade : IP 65 ,IP 67 ,IP 68(optional)

Antenna form : Line type, rod type

Antenna material : PTFE、304、316

Eleetrical Interface : M20x1.5,1/2"NPT

Contact Now

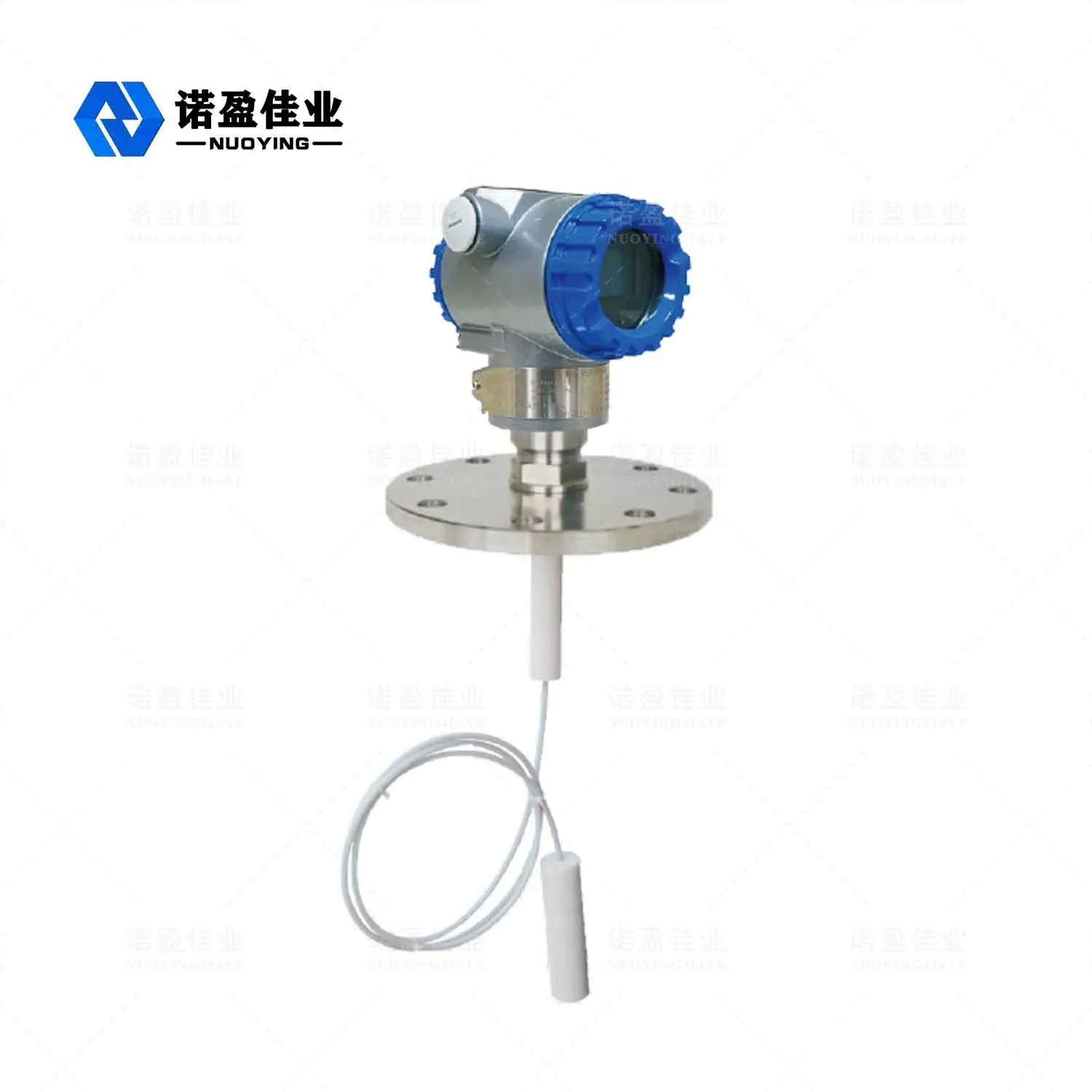

Hot Sale 24VDC Liquid NUOYING NYDR-3051 RF Capacitance Level Meter

Nuoying NYDR-3051 Radio Frequency Capacitance Level Meter Overview

Product Parameters

Power supply 24VDC NUOYING NYDR-3051 Pressure Level Meter Level gauge Signal output 4~20mA/HART/RS485/Modbus.

Typical application	Liquid, corrosive liquid
Probe material	304, PTFE, 316 (optional)
Power supply	24VDC
Operation temperature	-40 ~ +130℃, -184 ~ +260℃
Antenna form	Cable type, pole type
Working pressure	-0.1~1.6MPa
Process connection	Thread, flange (optional)

Products Description

NYDR-3051 RF Capacitor Level Meter Working Principle

The RF capacitance level meter works on the basis of radio frequency (RF) capacitance technology. A radio frequency is applied to the probe and the effect caused by the surrounding environment is determined by continuous analysis. Since all materials have a dielectric constant and their conductivity is different from that of air, the total impedance reacted to by small capacitance shifts changes when the probe is in contact with the material. Because the energized probe and the vessel wall form the two pole plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material, and when air (dielectric constant of 1.0) is replaced by any other material (dielectric constant >10), the change in capacitance value causes a change in impedance. This effect is measured by the circuit and then compared with the reference reference frame established by the sensitivity setting (circuit).

NYDR-3051 RF Capacitor Level Meter Design Feature

1. Modular converter and sensor integration, no moving parts, high reliability, strong anti-interference capability.
2. Wider applicability, a variety of probe forms, a variety of process connection forms, a variety of production materials, can be customized design.
3. Extremely easy to install, debug and maintain.

Power supply 24VDC NUOYING NYDR-3051 Pressure Level Meter Level gauge Signal output 4~20mA/HART/RS485/Modbus. Images
